Raman Scattering
Raman Scattering
When light hits a material, most of it either passes through or bounces back at the same energy it arrived with. But a small fraction of that light does something far more interesting, it comes back with a different energy entirely. That shift carries a chemical fingerprint of the material it interacted with.
This is, in essence, what Raman scattering is. Discovered in 1928 by Indian physicist C.V. Raman, this phenomenon became one of the most powerful tools in modern analytical science. Today, it sits at the core of spectroscopy systems used in pharmaceutical labs, semiconductor manufacturing, forensic investigation, and space exploration. The Raman effect definition, the theory behind it, its key variants, and where it is applied today. |  |
What Is the Raman Effect?

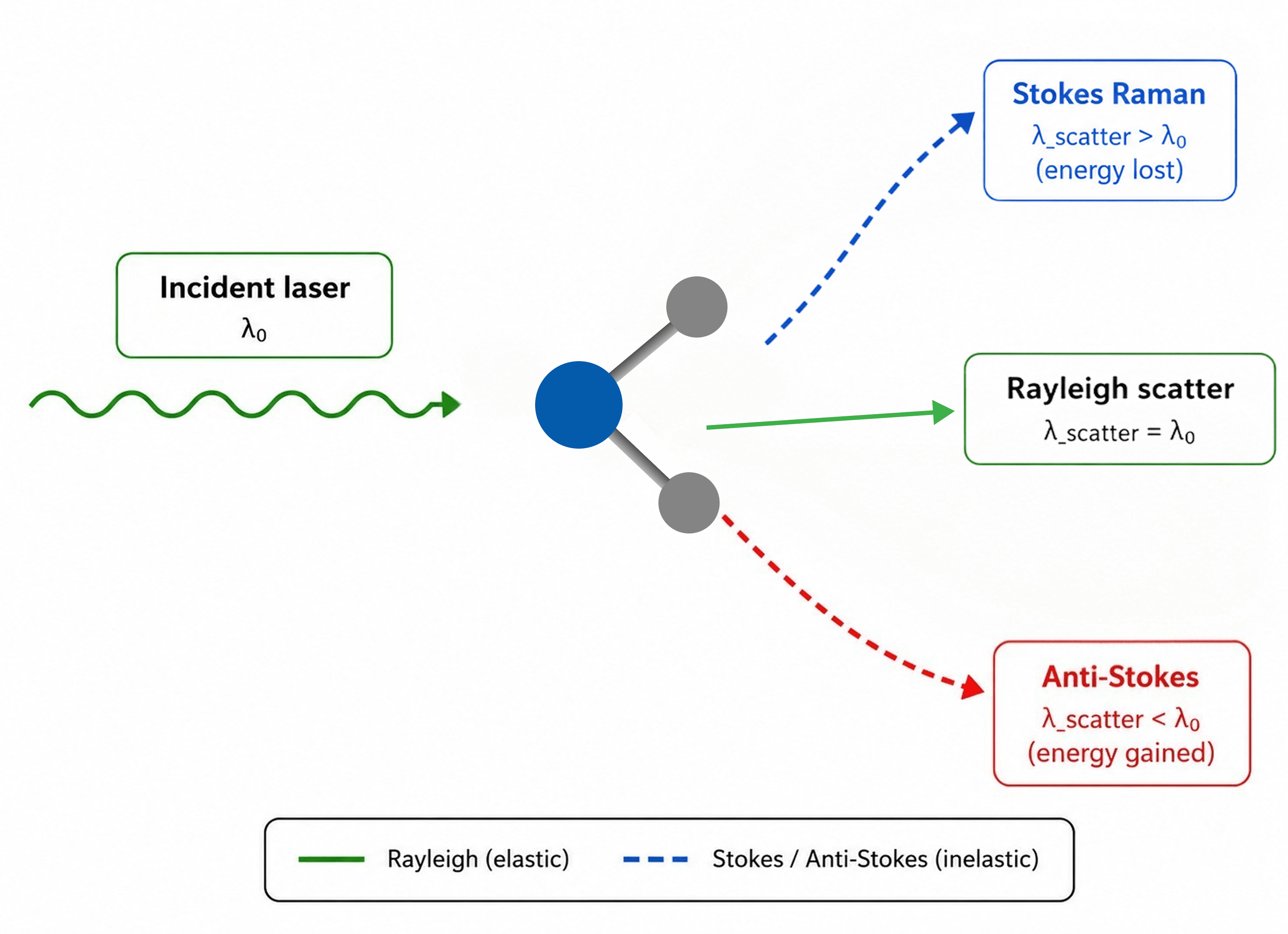

The Raman effect refers to the inelastic scattering of light by molecules. When a photon interacts with a molecule, it disturbs the electron cloud around that molecule. In most cases, the photon is re-emitted immediately with the same energy. This is called Rayleigh scattering, and it is elastic.
In a small number of interactions, the photon exchanges energy with the vibrational or rotational modes of the molecule. It either loses energy (Stokes scattering) or gains energy (anti-Stokes scattering). The resulting shift in frequency measured in wavenumbers (cm⁻¹) is unique to the molecular bonds involved.
Raman effect meaning in practical terms: each molecule leaves a specific spectral signature in the scattered light. That signature can be used to identify the molecule, study its structure, and track changes in it under different conditions.
C.V. Raman received the Nobel Prize in Physics in 1930 for this discovery. At the time, it was the first major physics discovery made entirely in Asia, and it was made using a simple mercury arc lamp and optical filters, no lasers, no computers.
Raman Scattering Process
To understand the theory of Raman effect properly, it helps to think in terms of energy states.

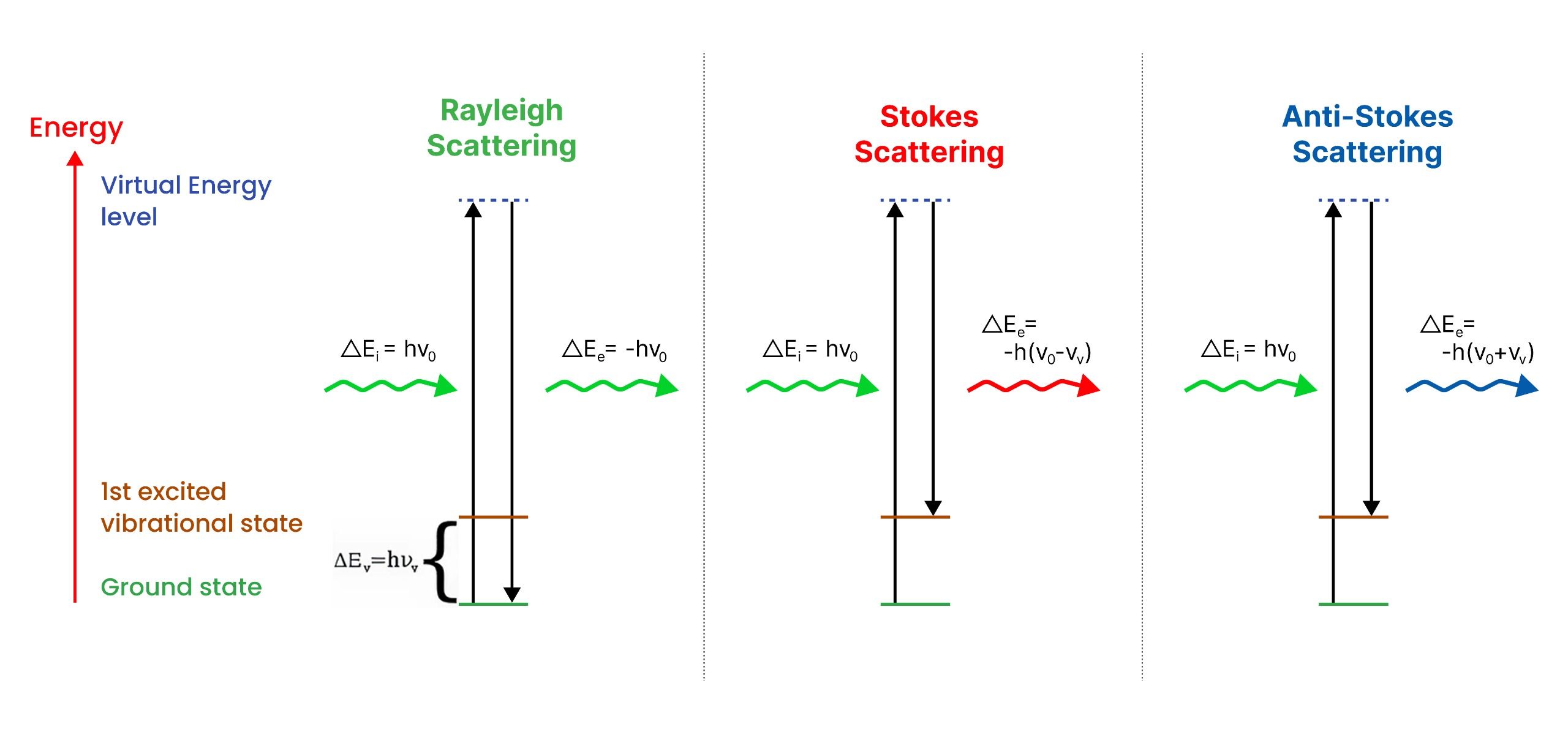

Every molecule has a set of vibrational energy levels. When a photon strikes a molecule, it can be thought of as temporarily raising the molecule to a "virtual energy state" not a real quantum state, but a transient, unstable condition created by the interaction.
The energy difference between the incoming and outgoing photon corresponds directly to a vibrational mode of the molecule. Each molecular bond - C–H, C=O, N–H, and so on vibrates at characteristic frequencies. The resulting Raman spectrum is essentially a map of those frequencies.
This is why Raman scattering is so useful analytically. No two compounds produce the same spectrum, which makes it possible to identify unknowns, verify purity, and study molecular interactions with high precision.
One important note: not all molecular vibrations are Raman active. A vibration must involve a change in the polarizability of the molecule to produce a Raman signal. This is different from infrared spectroscopy, which requires a change in dipole moment. The two techniques are often used together because they are complementary, what one misses, the other can detect.
Request for Information
Do you have any questions or requests? Use this form to contact our team.
Raman Light Scattering
Raman light scattering occurs across a very narrow slice of the total scattered light. Typically, only about 1 in 10 million photons undergoes Raman scattering. The rest scatter elastically (Rayleigh) or are absorbed.
This extreme rarity is what made Raman spectroscopy impractical for routine laboratory use before the invention of the laser in the 1960s. Early researchers like C.V. Raman had to work with intense sunlight or arc lamps and expose photographic plates for hours. Lasers changed everything - by providing a single, intense, monochromatic light source, they made it possible to detect the weak Raman signal reliably and quickly.
Modern Raman instruments use lasers in the visible or near-infrared range (typically 532 nm, 633 nm, 785 nm, or 1064 nm). A notch filter or edge filter is used to block the dominant Rayleigh scattered light, allowing only the weak Raman-shifted photons to reach the detector.
The resulting spectrum is plotted as intensity versus Raman shift (in cm⁻¹ relative to the laser frequency), giving a pattern of peaks that serve as the molecular fingerprint.
Raman Scattering Application
The Raman scattering effect is non-destructive and requires minimal sample preparation. This sets it apart from many other analytical methods. Pharmaceutical API / RMID Raman spectroscopy In pharmaceuticals is used to verify active ingredient content, detect counterfeits, and monitor crystalline form. A polymorphic shift in a drug compound, where the same molecule arranges itself differently can dramatically affect how the drug behaves in the body. Raman can distinguish between polymorphs without destroying the sample. |  |

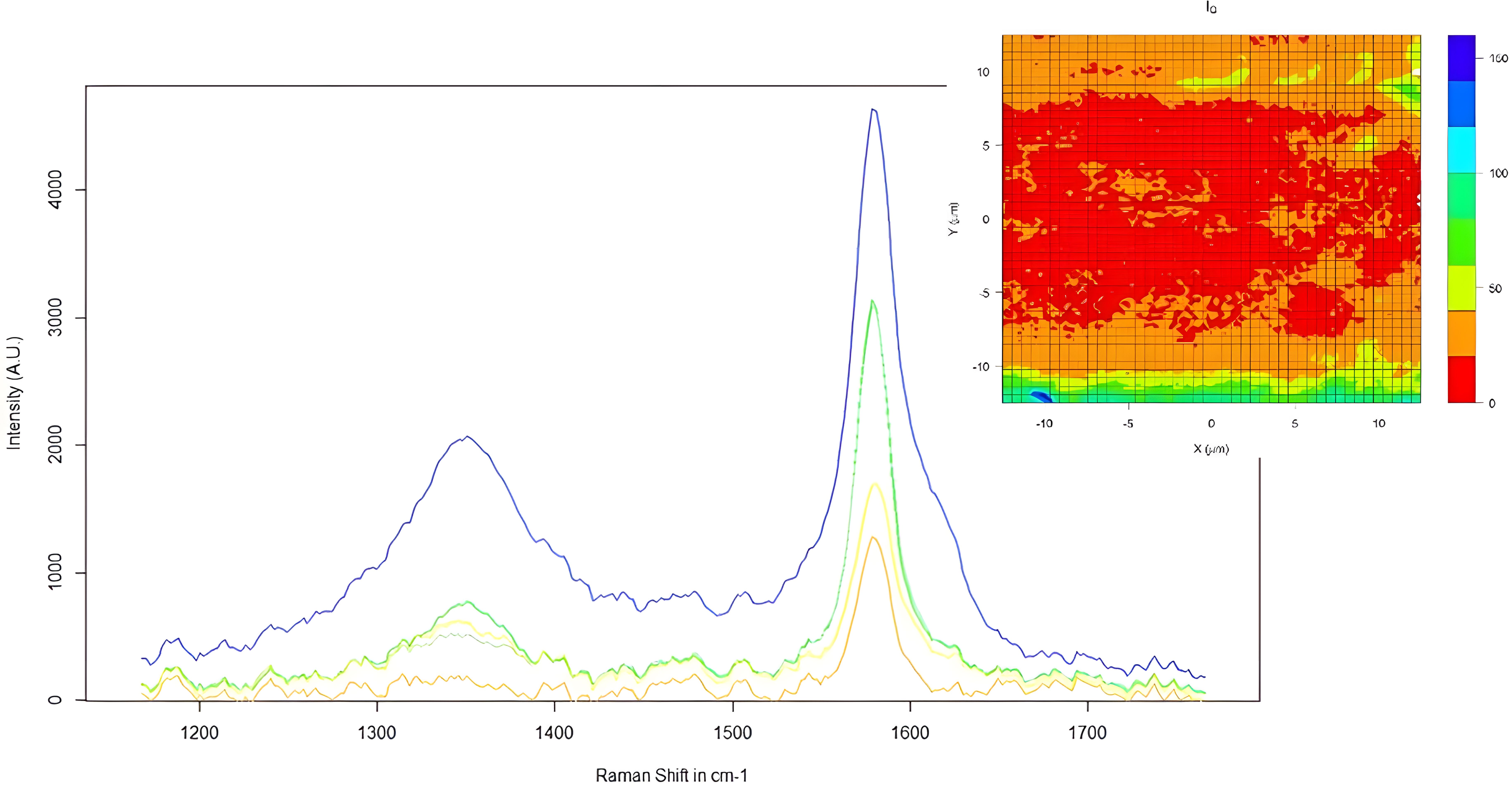

 | Materials Science Raman Spectroscopy In materials science, the Raman scattering effect is used to characterize carbon materials like graphene and carbon nanotubes. The "G band" and "D band" peaks in graphene Raman spectra have become standard markers for evaluating layer number, defect density, and strain. |
Geology & Mineralogy
Raman Spectroscopy In geology and Mineralogy, Raman scattering can identify minerals without contact. The spectrum reveals prominent phosphate-related vibrational peaks around ~700 cm⁻¹ and ~1100 cm⁻¹, corresponding to the symmetric and antisymmetric stretching modes of PO₄³⁻ groups. A distinct band near 486 cm⁻¹ is linked to symmetric Al–O–Al stretching vibrations. In the lower frequency range (140–330 cm⁻¹), the observed features are associated with bending motions of O–Li–O (or O–Li–F) linkages along with Li–O bond vibrations, highlighting the structural dynamics within the material. |  |
 | Food Safety
In food safety, Portable Raman instruments are transforming food safety by enabling rapid, non-destructive testing without opening packaging. They can detect adulterants, verify labeling, and identify contaminants in real time. This helps prevent food fraud, ensures product authenticity, and protects consumer health. Their speed and portability make them ideal for on-site inspections, allowing faster decisions and more proactive safety measures across the food supply chain.
|
Surface Enhanced Raman Scattering (SERS)
The biggest limitation of conventional Raman spectroscopy is signal weakness. Since only about one in 10 million photons scatters inelastically, detecting trace amounts of a substance at very low concentrations is difficult.
Surface enhanced Raman scattering (SERS) solves this problem dramatically. When a molecule is placed on or near a roughened metal surface, typically gold or silver nanoparticles, the Raman signal can be enhanced by factors of 10⁶ to 10¹⁰ or even more. In some cases, SERS has been used to detect single molecules.
The enhancement comes from two main mechanisms:
Electromagnetic enhancement: is the dominant effect. Metal nanoparticles support localized surface plasmon resonances collective oscillations of conduction electrons triggered by incoming light. These plasmons create intense, highly localized electromagnetic fields at the metal surface, particularly in nanoscale gaps between particles (called "hot spots"). A molecule sitting in one of these hot spots experiences a dramatically amplified electric field, which increases both the excitation efficiency and the re-emission of Raman-shifted photons.
Chemical enhancement: plays a secondary role. When a molecule adsorbs onto the metal surface, there can be charge transfer between the metal and the molecule that modifies the molecule's polarizability, making certain Raman transitions more probable.
The practical impact of surface enhanced Raman scattering has been enormous. SERS is now used in medical diagnostics (detecting cancer biomarkers at nanomolar concentrations), environmental monitoring (trace pesticide detection in water), and biosensing. The challenge remains reproducibility creating SERS substrates with consistent, controllable hot spot distributions is technically demanding and an active area of research.
Conclusion - Raman scattering is one of those rare scientific phenomena that was interesting in theory when it was discovered and has become increasingly indispensable as technology has caught up with its potential. From the foundational theory of Raman effect to advanced applications like surface enhanced Raman scattering and the stimulated Raman effect, this field has expanded into virtually every area of analytical science and materials research.
